Backup Battery

Backup Battery

77 reviews

Regular price $33.60
Regular price $42.00 Sale price $33.60
SALE! Sold out
Shipping calculated at checkout.
Condition
OR

Read Important Note section below before purchasing.

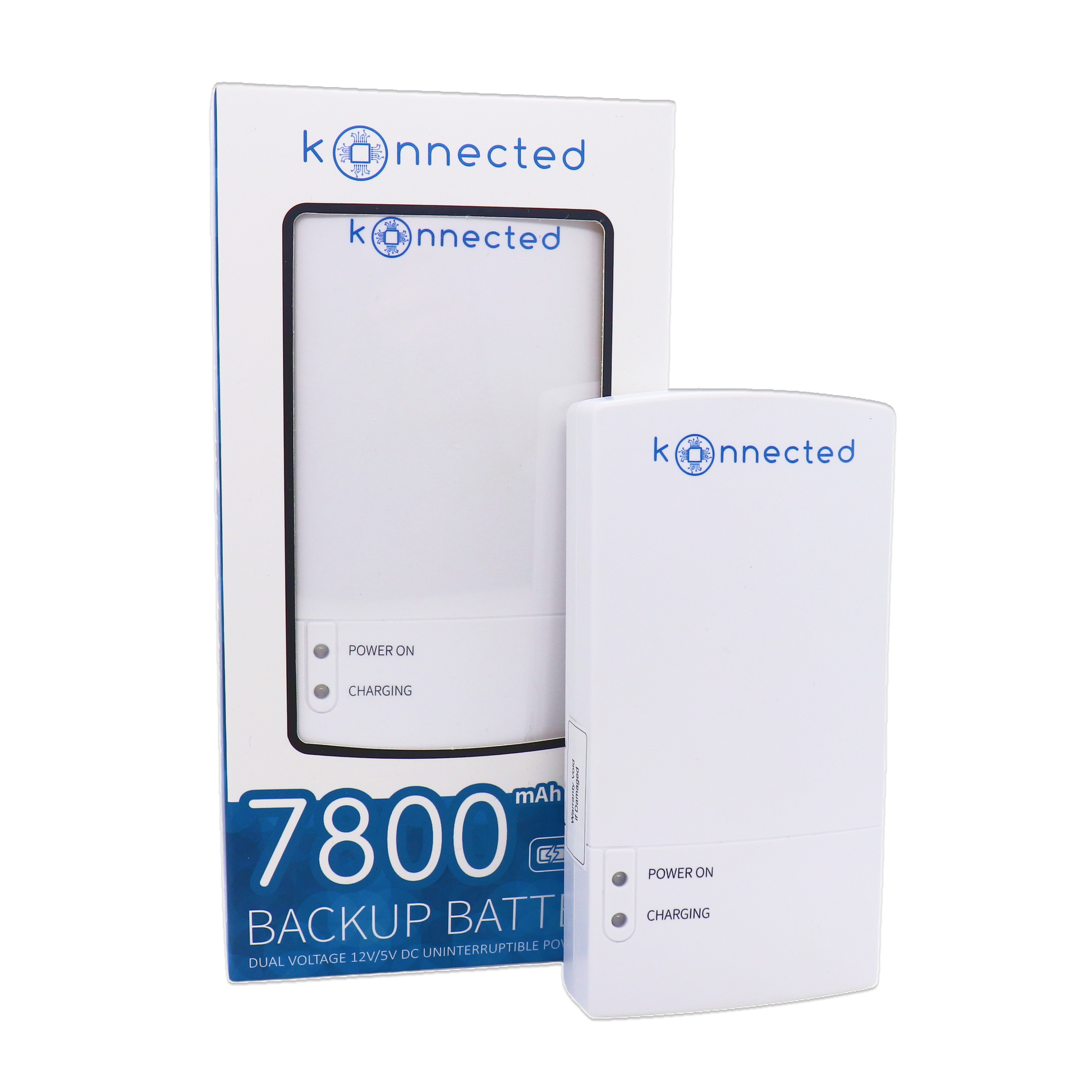

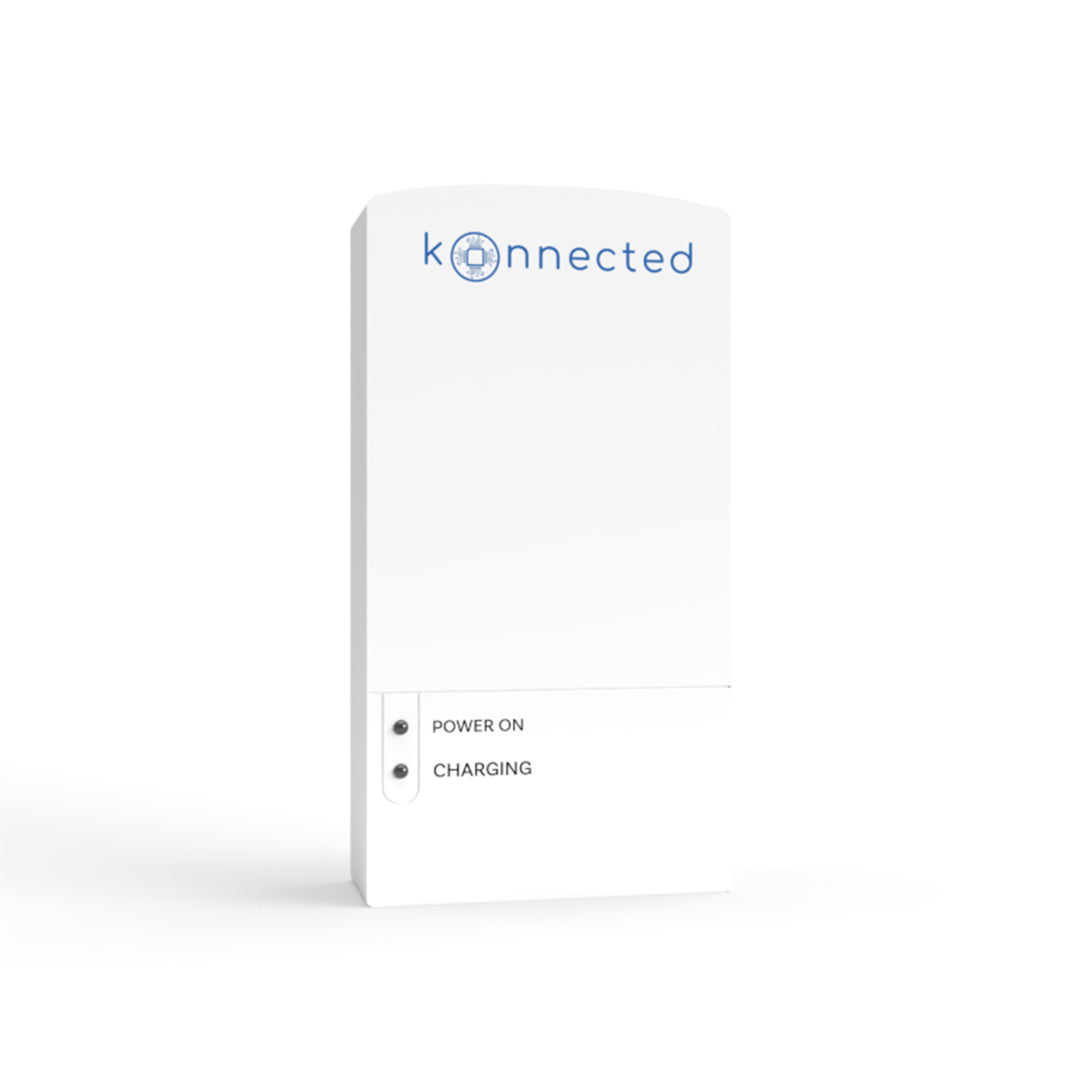

Keep everything running during a power failure with this mini-UPS 12V DC power bank made especially for Konnected. This 7800mAh Li-ion battery can power your entire Konnected system for up to 14 hours!

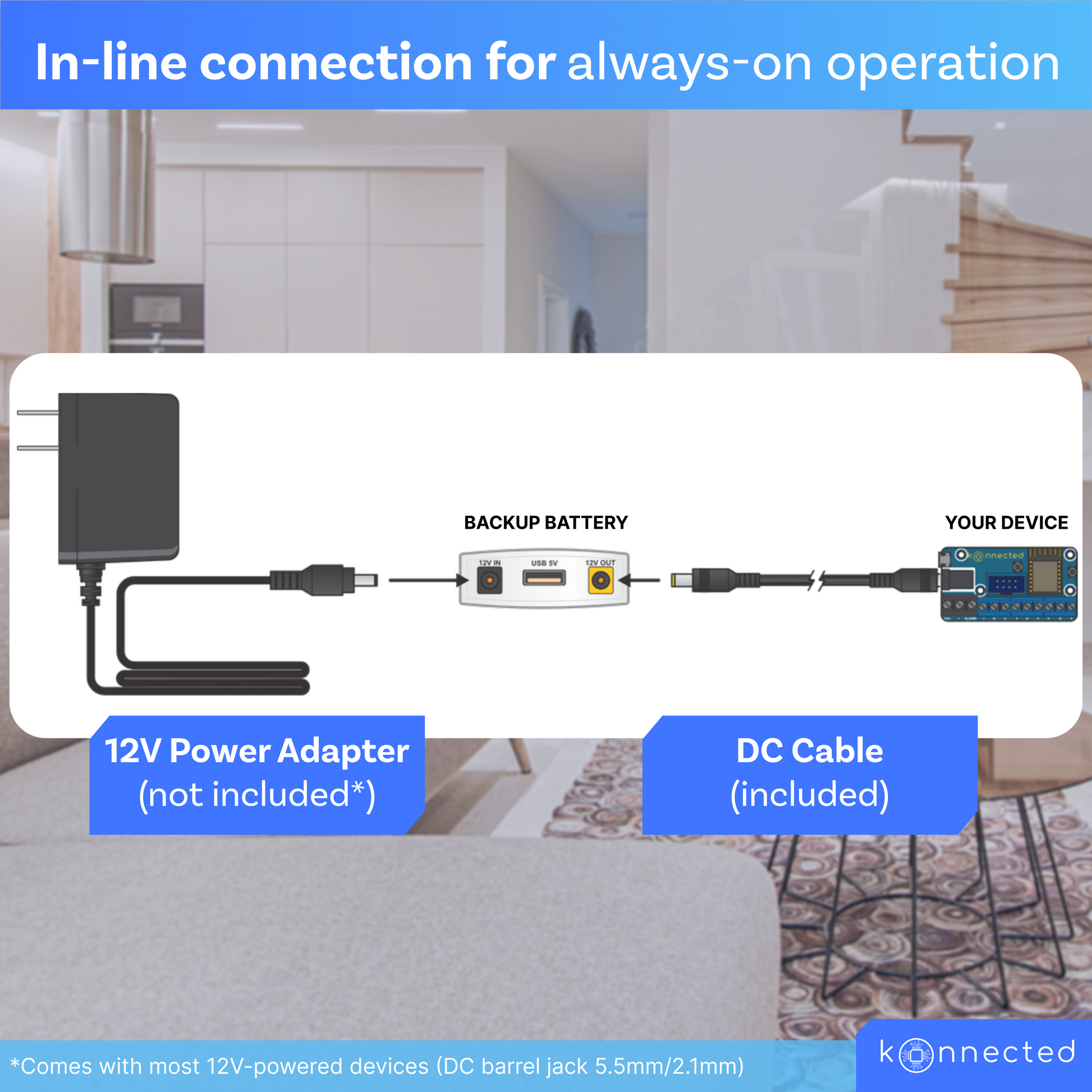

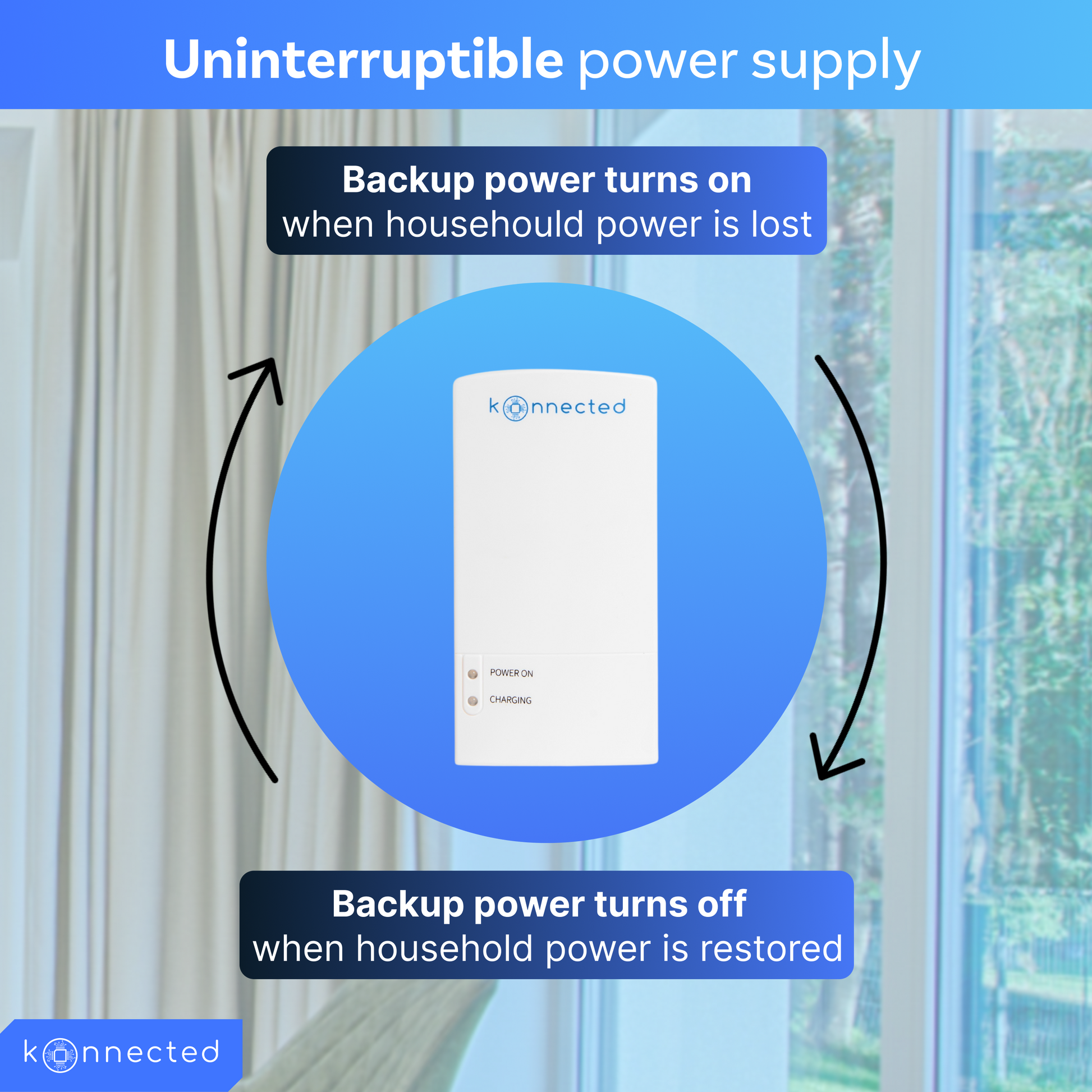

This device plugs in to your 12V power adapter and automatically and instantaneously switches over to battery power if the household power fails.

It's also suitable for backup power for a WiFi router, cable modem, or any 12V DC consumer electronic device.

Save 5% by selecting the Refurbished option above. Refurbished backup batteries may come in generic poly-bag/bubble-bag packaging, have been fully tested and come with the same warranty and return policy as brand new items.

Important Note

  • US, CA, UK customers - buy directly here on our website
  • EU customers - buy from our Partner m.nu
  • International customers outside of aforementioned areas - check Where to Buy for availability

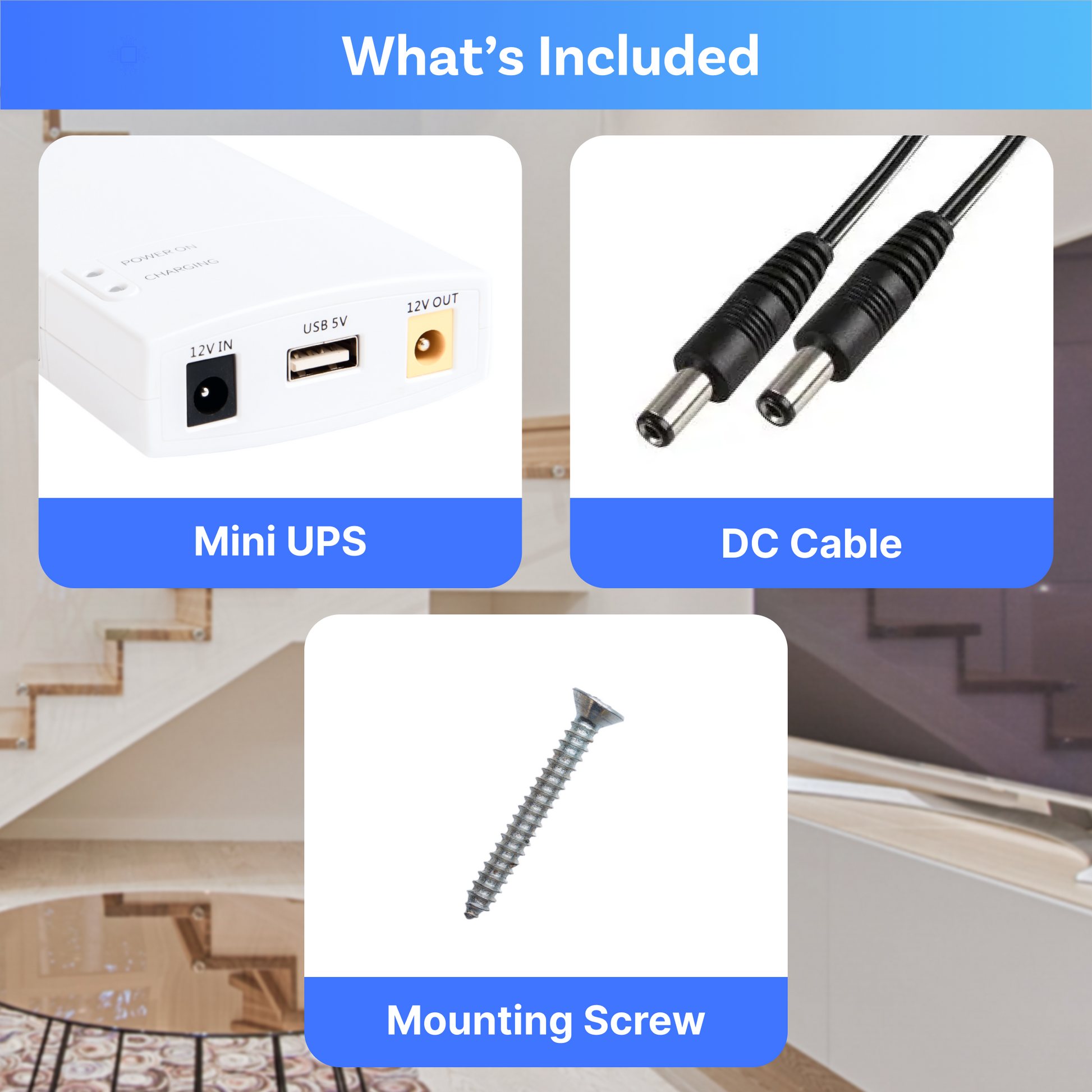

What's Included

  • Konnected Backup Battery
  • DC male to DC male power cable
  • Mounting screw
  • Quick Start Guide & warranty info

Requires a 12V DC power adapter (not included). Use the one that comes with your Konnected kit or sold separately

Features

  • 7800mAh UPS Backup Battery
  • 8h+ of backup power(varies depending on connected equipment)
  • ~14h for Konnected Alarm Panels (tested by Konnected under ideal conditions)
  • Auto-switching backup power
  • DC male to DC male power cable included
  • Handles most gadgets (12V & 5V USB outputs)
  • Wall-mount ready

Documentation

More information available here.

Technical Specifications

  • Input voltage: 12V - 12.7V DC
  • DC port output voltage / current: 12V DC / 2.5A max
  • USB port output voltage / current: 5V DC / 2.1A max
  • Battery capacity: 7800mAh
  • Charging time: 8 hours

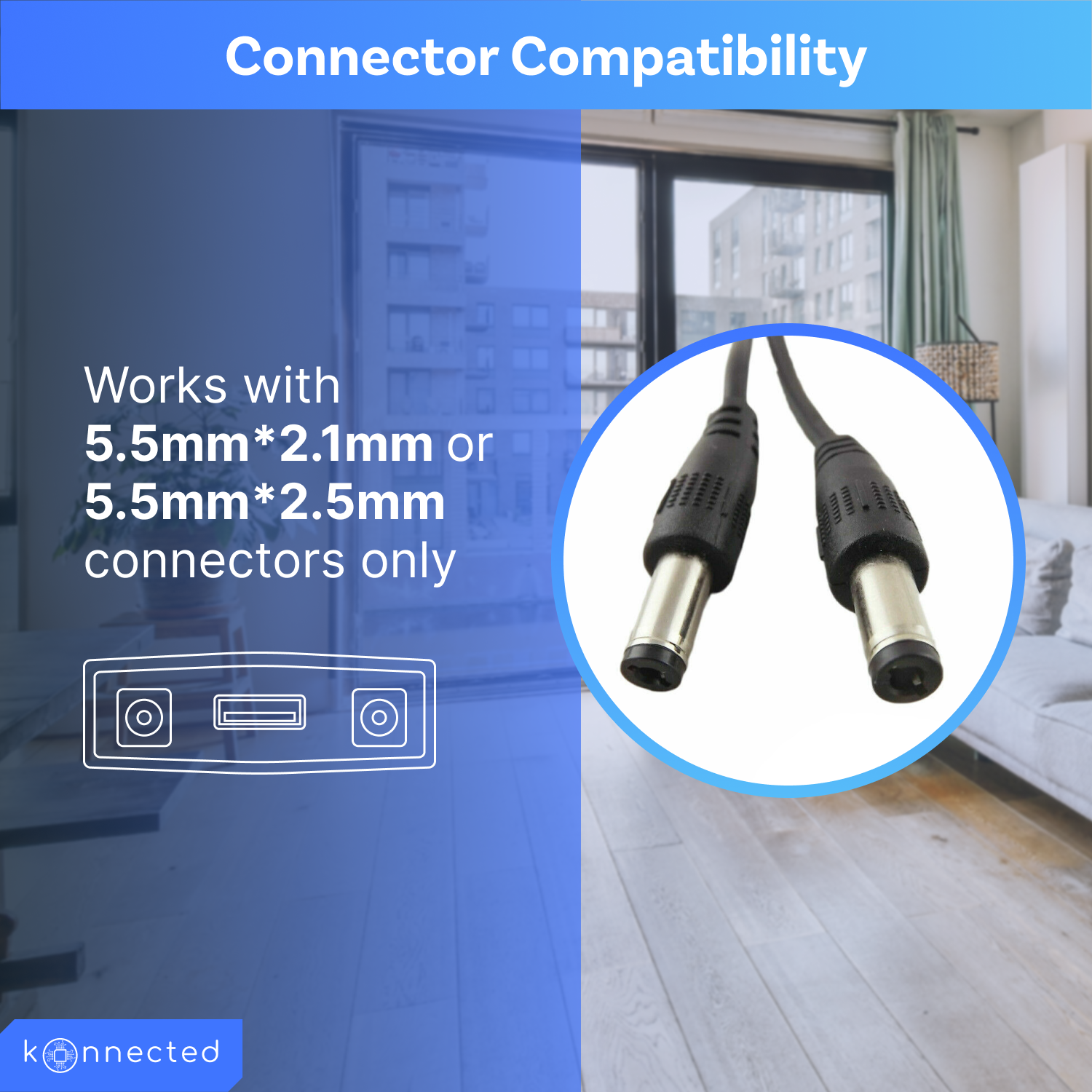

  • DC input port: 2.1mm ID / 5.5mm OD
  • DC output port: 2.5mm ID / 5.5mm OD
  • Operating temperature: -20°C to 45°C
  • Dimensions: 130mm x 68mm x 26mm
  • Country of origin: China
  • UPC: 681378132519
View full details

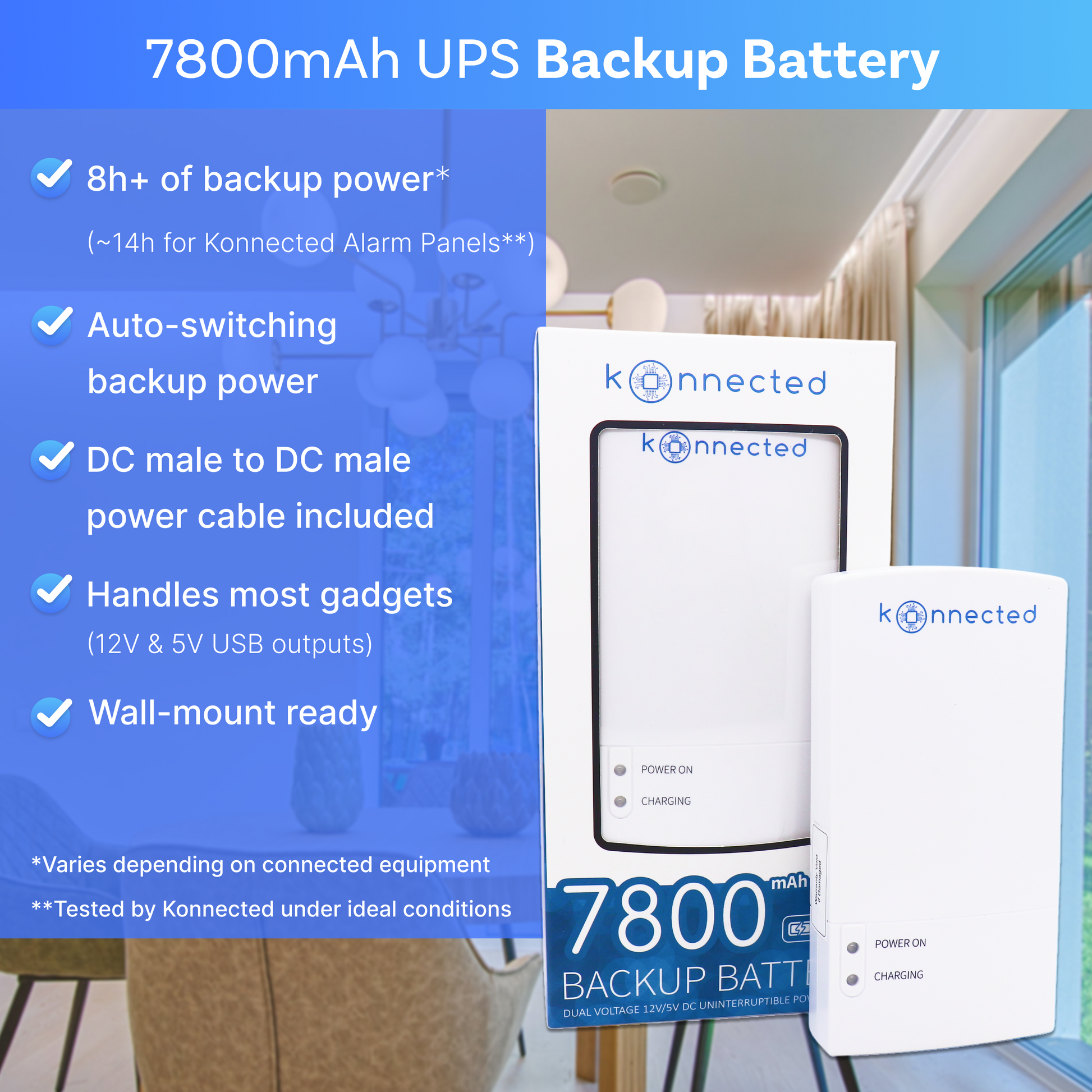

7800mAh UPS

Backup Battery

  • Up to 8h of backup power
  • Auto-switching backup power
  • DC male to DC male power cable included
  • Handles most gadgets
    (12V & 5V USB outputs)
  • Wall-mount ready

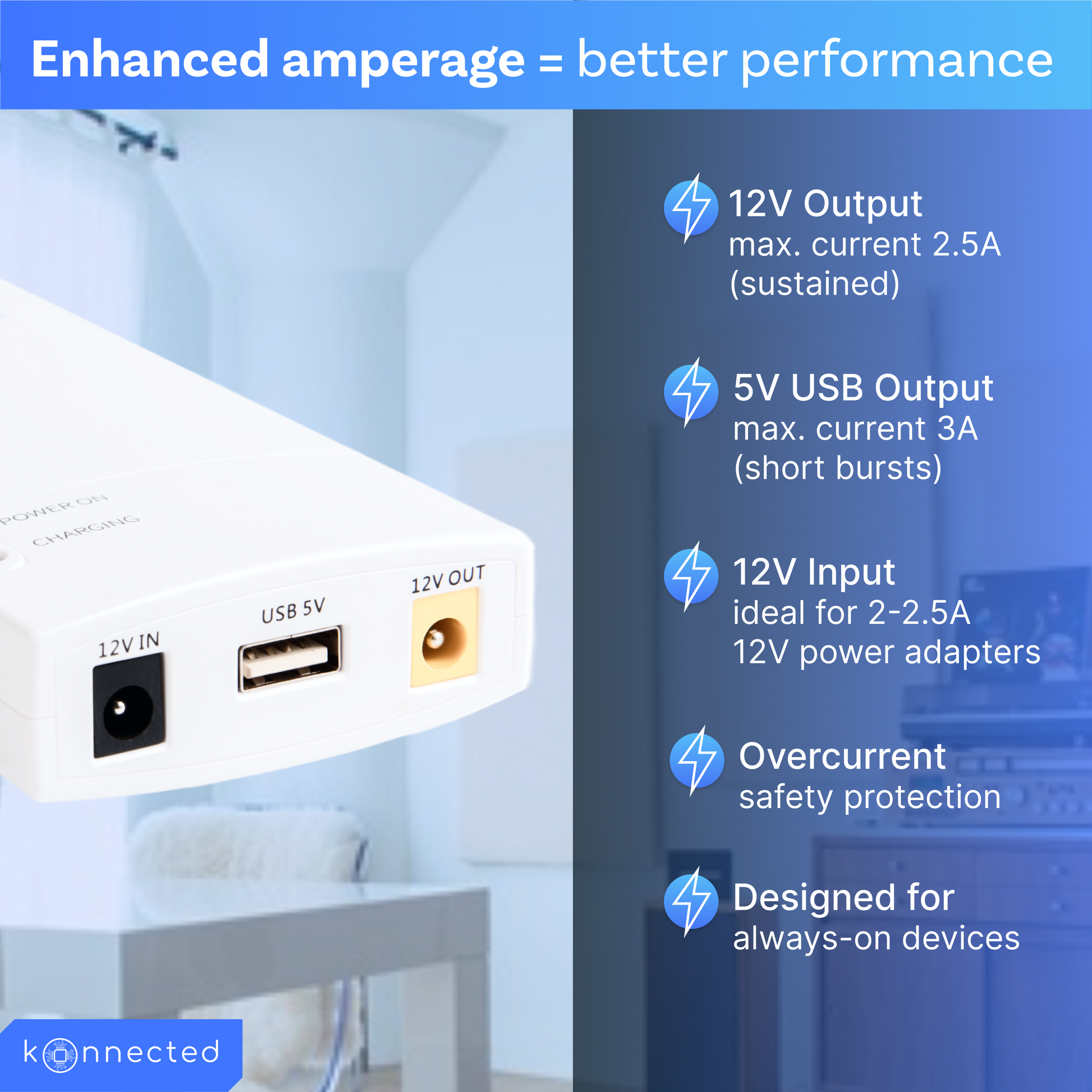

Dual Voltage outputs for 12V and USB devices

  • 12V Output
    max. current 2.5A (sustained)
  • 5V USB Output
    max. current 3A (short bursts)
  • 12V Input
    ideal for 2-2.5A 12V power adapters
  • Overcurrent safety protection
  • Designed for always-on devices

Frequently Asked Questions

What devices are compatible with Konnected's backup battery?

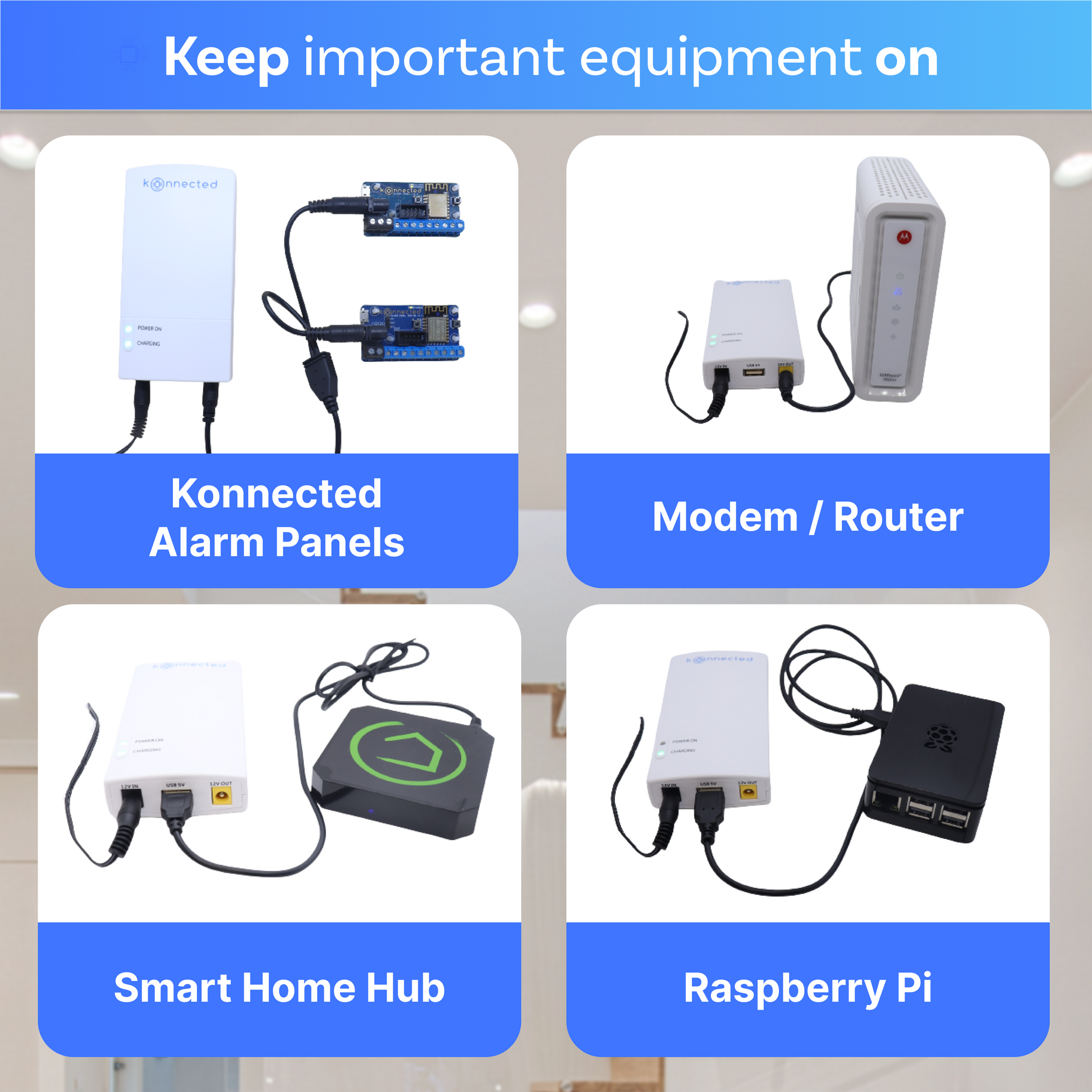

Konnected's Backup Battery is compatible with many consumer 12V or USB-powered consumer gadgets. This includes all of Konnected's Alarm Panels (of course!), many (but not all) home routers and modems, Raspberry Pi and other mini-computers, smart home hubs such as the Aeotec SmartThings hub or Hubitat Elevation hub, USB-powered cameras such as Wyze cameras or Ring cameras, LED lights, portable fans, and many more!

How can I check if my router or modem is compatible?

First, check the power adapter that came with your device. Compatible devices will either have a "wall-wart" or "plug pack" style power adapter or a USB adapter. Check the specs on the back of the power adapter and make sure the OUTPUT voltage is 12V or 5V, and the OUTPUT amperage is 2.5A or less (for 12V devices) or 3A or less (for 5V devices).

If your router or modem accepts household power directly (no DC power adapter), or anything other than 12V or 5V DC, then it's unfortunately not compatible.

Can Konnected's Backup Battery also be used as portable phone charger or power bank?

Yes! This Backup Battery also doubles as a standalone power bank. Use it when on the go as a backup charger for your smartphone or other USB gadgets.

How does the auto-switching feature work?

Konnected's Backup Battery has no buttons or switches! It automatically detects when your gadget is plugged into the 12V OUT or 5V USB OUT socket and starts delivering power. It will remain on while your gadget keeps using power (or until the battery is exhausted) as long as your device draws at least 30mA of current (1% of the maximum current). The Backup Battery will switch off automatically when your gadget is unplugged, or if your device turns off or drops below 30mA of current draw.

For this reason, this product is suitable for devices that are always-on and require continuous power. It will not work well with gadgets that periodically switch on and off, or that go into a very low-power standby mode.

How do I connect a Aeotec SmartThings hub or other 5V device that's NOT a USB connector?

The Aeotec hub and some other devices use a DC barrel jack connector but require 5V power. In this case, you need a USB to Barrel Jack cable, and plug the USB end into the 5V USB OUT on the Backup Battery.

DO NOT connect the 12V OUT to a device that requires 5V! It will damage your device!

Is there a status charge indicator on the device?

No, there is no indicator showing the remaining charge on the device.

Can you double the batteries to extend the cutover duration?

Doubling the batteries by daisy-chaining them is not very effective. To extend runtime, it's best to use separate batteries for different devices rather than daisy-chaining them. For example, use one battery for the router and another for the modem.

What's the diameter of the 12V input?

5.5mm (outer) x 2.1mm (inner).

Customer Reviews
4.6 Based on 77 Reviews
5 ★
81%
62
4 ★
8%
6
3 ★
4%
3
2 ★
4%
3
1 ★
3%
3
Customer Photos
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
  • Konnected
  • battery
  • system
  • power
  • alarm panel
  • Works
  • sensors
  • help
  • siren
  • device
DW
03 Feb 2024
Daniel W.
United States United States

Easy setup and install

Very easy to set up and install

Konnected Backup Battery Review
MP
08 Jan 2024
Mike P.
United States United States

Very impressed

Configuration of the Pro was simple. Worked as described in the videos. Linked to Smarthings with no issues. I may have to switch to a plastic enclosure. Wifi drops if I install the metal enclosure cover. I may just add a wifi. extender in the cabinet. Happy with my choice.

TS
31 Oct 2023
Tal S.
United States United States

Amazing product and I’m hard to please

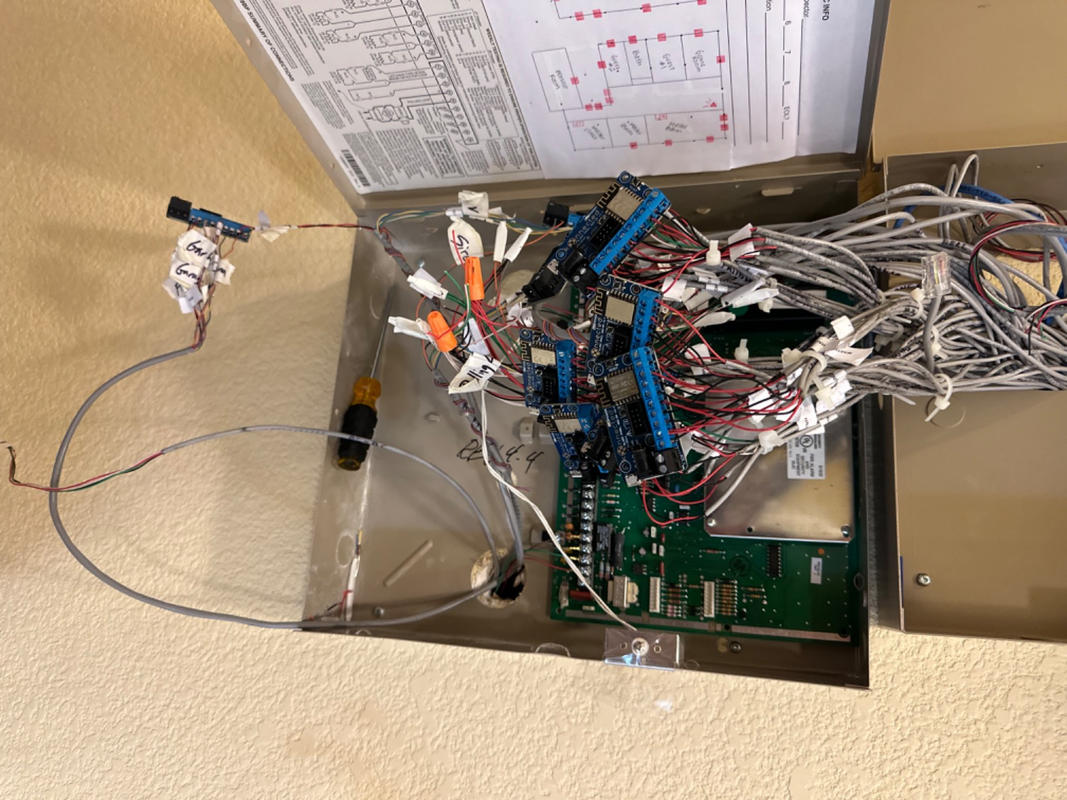

I cannot say enough about this product. I managed to wire a 52 zone house in 2 hours. Very easy. Now have my neighbors trying it out.
