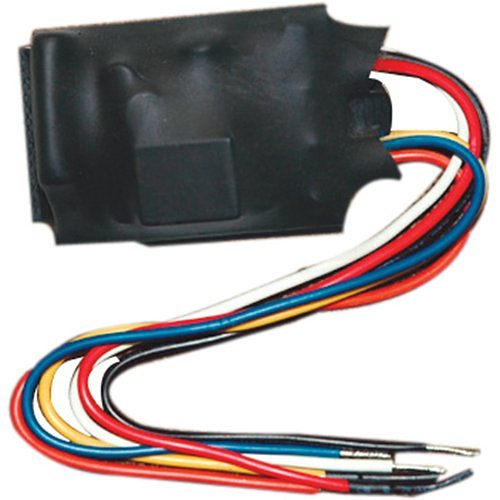

Kidde SM120X Hardwired Smoke Alarm Relay Module

Kidde SM120X Hardwired Smoke Alarm Relay Module

$29.00
Skip to product information
Kidde SM120X Hardwired Smoke Alarm Relay Module
  • Kidde SM120X Hardwired Smoke Alarm Relay Module
Kidde SM120X Hardwired Smoke Alarm Relay Module

Kidde SM120X Hardwired Smoke Alarm Relay Module

5.0
Rated 5.0 out of 5 stars
2 Reviews
$29.00

📦 Sorry, this item is currently unavailable. Buy from Amazon instead.

Use this relay module to connect your interconnected hardwired and household AC-powered Kidde smoke alarms to your Konnected Alarm Panel. This device wires into the 3-wire hot (black) / neutral (white) / interconnect (red) circuit and provides a Normally Open (NO) and Normally Closed (NC) dry-contact output that can be connected to any input zone on the Konnected Alarm Panel. The relay activates when the smoke alarm interconnect is triggered, allowing you to integrate your household wired smoke alarms into your smart home automations and routines.


Features

Works with a variety of Kidde models (see User Guide for compatibility)
Documentation
Technical Specifications

Electrical Rating: 120V AC 60 Hz 0.08 Amp

Contact Rating: 10 Amps @ 120VAC Non-inductive; 5 Amps @ 30VDC

DC Output: 5mA max (current limited)
5.0
Rated 5.0 out of 5 stars
Based on 2 reviews
Total 5 star reviews: 2 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
100%would recommend this product
Write a Review (Opens in a new window)
2 reviews
  • JL
    Jeffrey L.
    Flag of United States
    I recommend this product
    Rated 5 out of 5 stars
    1 year ago
    Absolutely necessary addition

    I’ve had the SM-120x relay in my system for years - it’s an effortless way to add smoke sensing to a Konnected system. If you have Kidde hardwired interconnected smoke alarms, just add one at any smoke detector and connect the dry contact to your Konnected board… and you’ll have a smoke detector zone for all interconnected smoke detectors. Cheap, easy, and bulletproof.

    Was this helpful?
  • J
    Joe
    Flag of Ireland
    I recommend this product
    Rated 5 out of 5 stars
    1 year ago
    It doesn’t get better!

    I Love my Konnected Alarm Panel Pro, and Konnected Battery Backup. But, I have smoke alarms that I wanted to integrate with Konnected. This allows me to do just that. Affordable, and amazing. Thank you 🙏

    Was this helpful?
