Contact Sensor (Surface Mount Magnetic) for Doors or Windows

Contact Sensor (Surface Mount Magnetic) for Doors or Windows

Double Stick Tape Mount (1½")
$5.00
Skip to product information
Contact Sensor (Surface Mount Magnetic) for Doors or Windows
  • Contact Sensor (Surface Mount Magnetic) for Doors or Windows
Contact Sensor (Surface Mount Magnetic) for Doors or Windows

Contact Sensor (Surface Mount Magnetic) for Doors or Windows

$5.00

This magnetic contact sensor creates a closed loop when the door or window is closed (and the magnet is close to the sensor). Components include Gold Plated Hermetically Sealed Reeds, 3M VHB Double Stick Tape, ABS Fire Retardant Cases, Nickel Plated Terminals.

Works plug-and-play with Konnected as a door or window sensor.

Sticks easily to the door or window frame with the pre-installed 3M VHB Double Stick Tape. The 2" variant (VIP100) also has tabs and screw holes for screw mounting.
What's Included

Each unit contains one contact and one magnet.
Features
  • Rare Earth Magnet
  • UL Safety Approval
Documentation
Technical Specifications

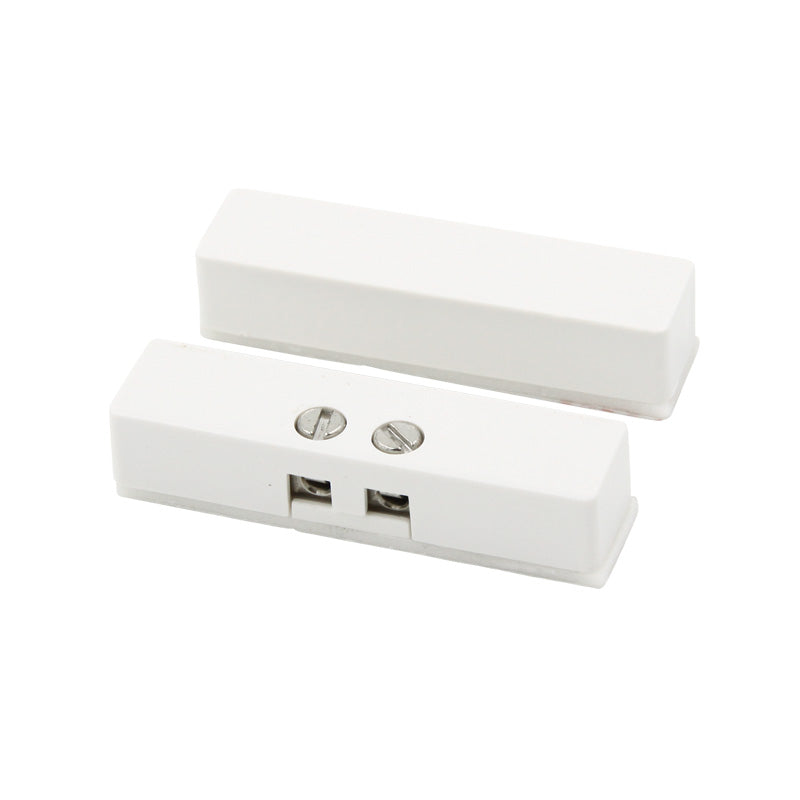

  • VIP100-1 (no tabs): 1 1/2" L x 1/4" W x 3/8" H

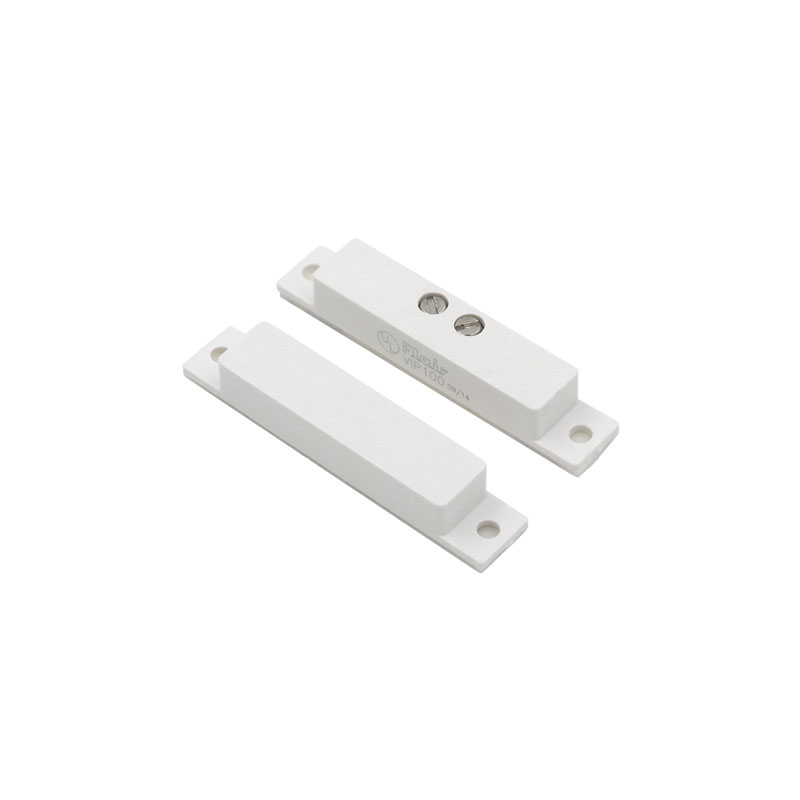

  • VIP100 (with tabs): 2" L x 1/4" W x 3/8" H
  • Detection Gap: approximately 3/4"
  • Color: White
  • Contact Type: Normally Open (NO) Form A
  • Max Voltage: 100 VDC
  • Max Current: 0.5A
  • Model Number: VIP100 (with tabs) or VIP100-1 (no tabs)
  • Manufacturer: Flair Electronics
